Replace a panel. Intersvyaz intercoms

It is possible to programmatically replace an existing intercom panel with a new one from the same vendor while maintaining the intercom settings.

To apply the function, a new panel must be installed and configured.

To replace the intercom panel:

  1. From the intercom details card, select the Replace panel button.

Group 27.png

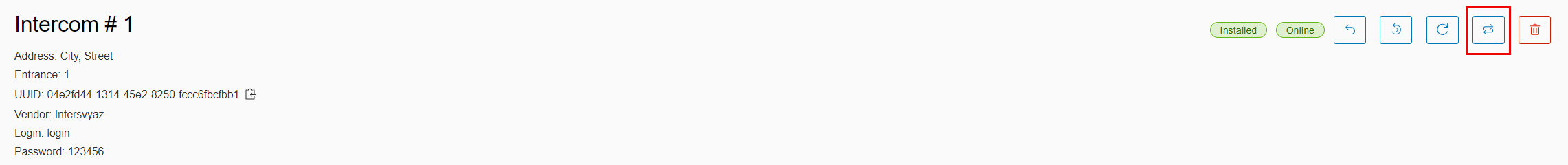

The Replace panel button
  1. On the opened Replace intercom panel, complete the fields. By default, they are prefilled with the current intercom settings. You may keep the settings or specify new.

image 59.png

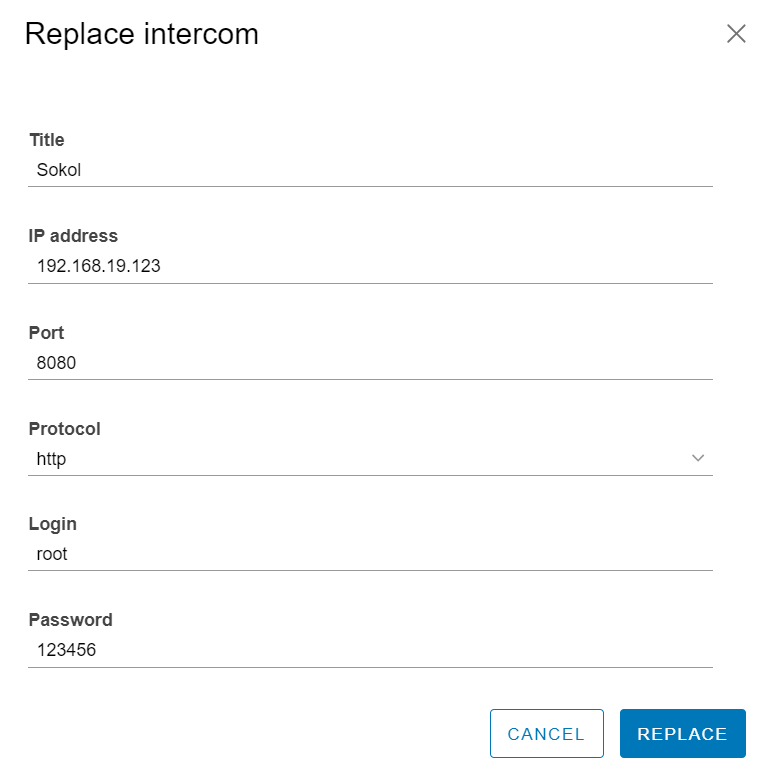

The opened panel to complete
  • Title

  • IP address

  • Port

  • Protocol

  • Login

  • Password

  1. Select Replace to complete the action.

Consequently, the system will automatically verify the availability of replacements for the panel availability. If replacement is available, the system will proceed with the replacement process. This ensures that the necessary components are updated as needed. You’ll be notified with the relevant notification.

Upon successful replacement of the panel with a connected to the intercom camera, the camera URL will be automatically replaced and updated on Mediaserver.
