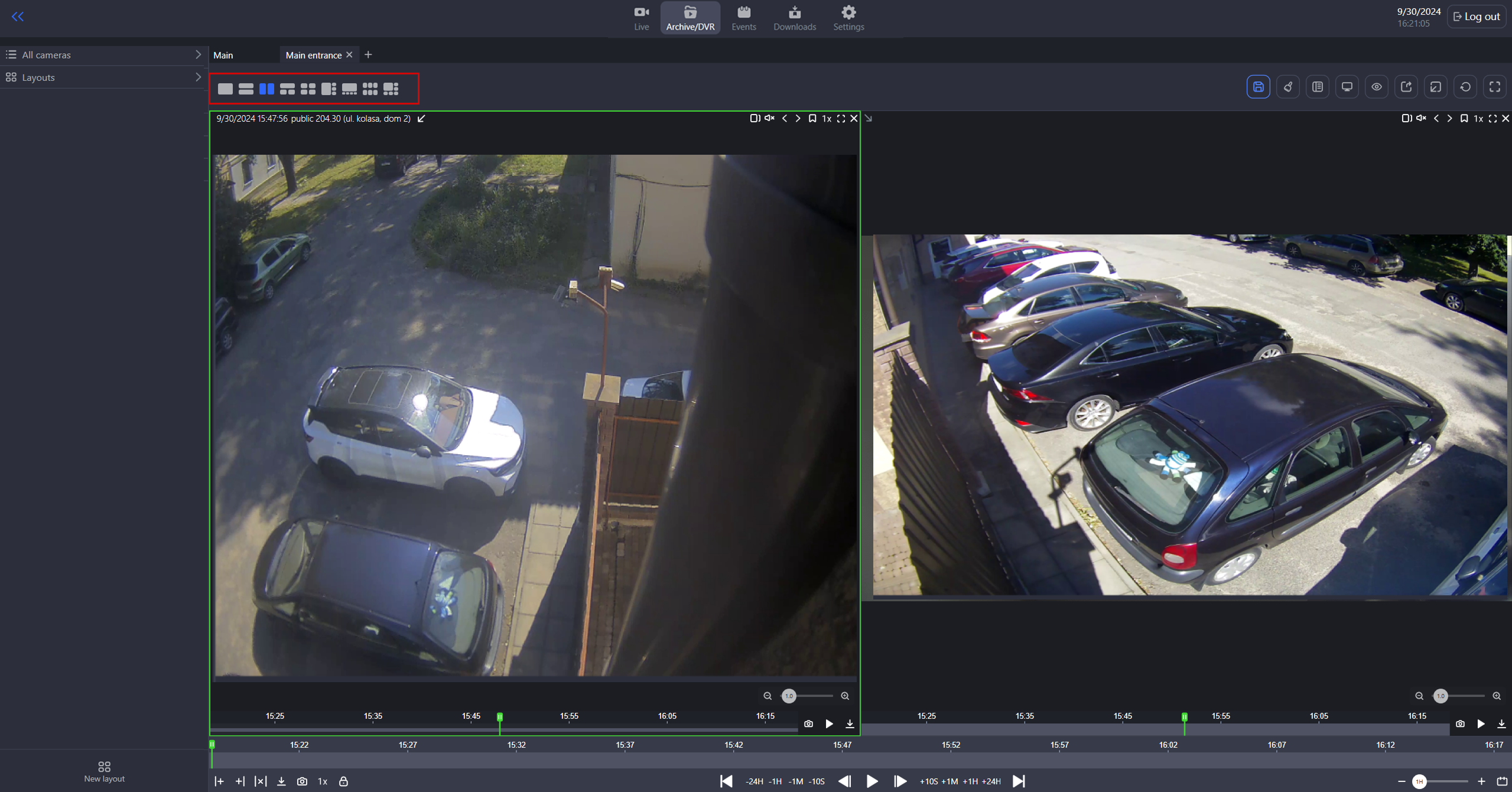

In Archive/DVR mode, the following set of templates is available for each layout.
.png?cb=2d63500707f9d3eff9e7e3c9a1f3071c)
When you hover over a template, a tooltip with the number of cameras in the template is displayed.
When setting up layouts, you should take into account the limitation on the number of templates in the Archive/DVR section. In the program settings of the Settings section, the Show all archive layout templates settings affects the following way:
-
If the setting is enabled, templates containing up to 16 cameras will be available in the Archive/DVR section.
-
If the setting is disabled, templates with up to 6 cameras will be available.
