Events in the Desktop client

Event logs

In the Events section, you can track the event logs, which are displayed on the following tabs:

• System events:

  • Activity change for low/high quality streams.

  • Camera status changes.

• User events contains the events added manually by the user when viewing camera archives.

• Camera events contains the events of motion detection SMPT; events from the ONVIF-compatible cameras.

• Events from devices contains the events from various third-party systems and devices.

Filters

To quickly search for events, filters are provided on each tab. Depending on the selected tab, the set of filters may differ.

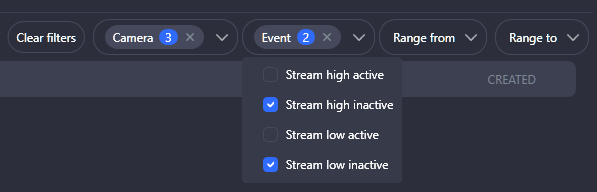

Filters allow you to refine the events you see by specifying criteria, such as:

• Specific cameras.

• Event type. Event types depend on the selected tab.

• Certain periods. Filling in both fields is optional: you can only specify the start date or end date of a period.

The list is filtered automatically after selecting at least one filter.

Generate a report

You can generate a report for each type of events and download it in the .XLXS file. The generated report inherits all the filters set on the tab when generating a report. If the filters aren’t set, the report will contain all the events of the selected type.

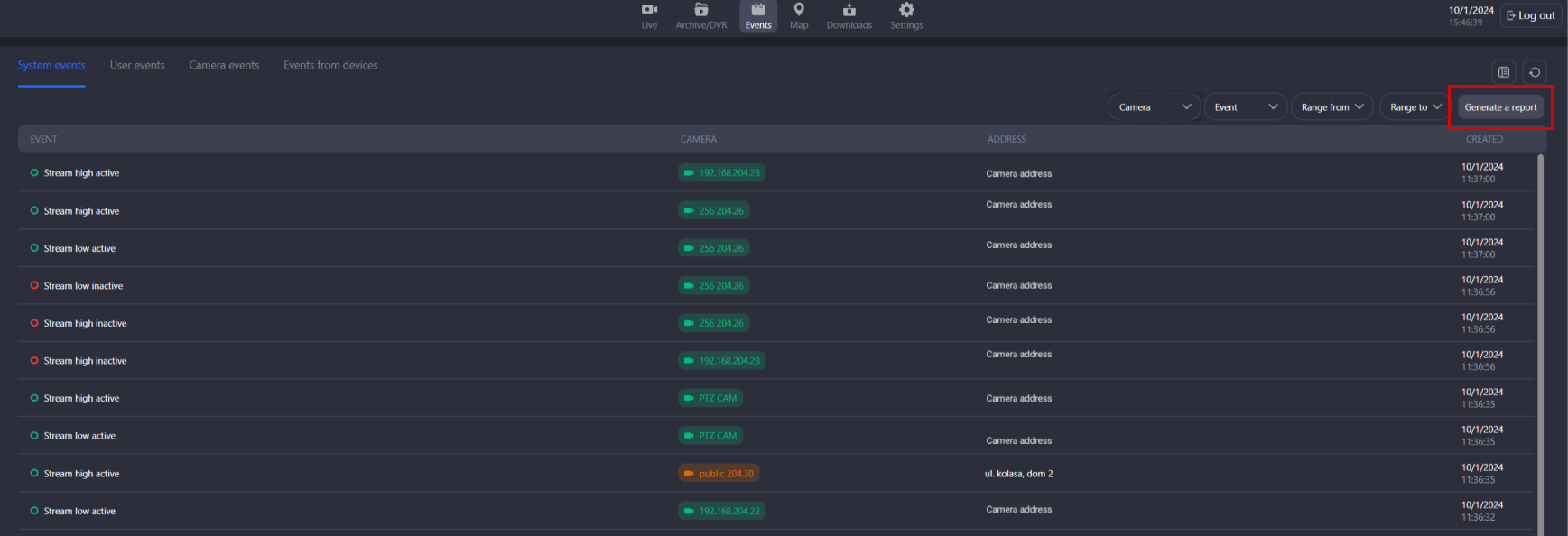

To generate a report, select Generate a report at the top right.

In the opened window, complete the details where to save the report and confirm the action.

You’ll be notified on the process of the report generation with the following notification.

Upon completion of the report generation, you’ll see the following notification. To navigate to the downloaded file, select Show in folder.

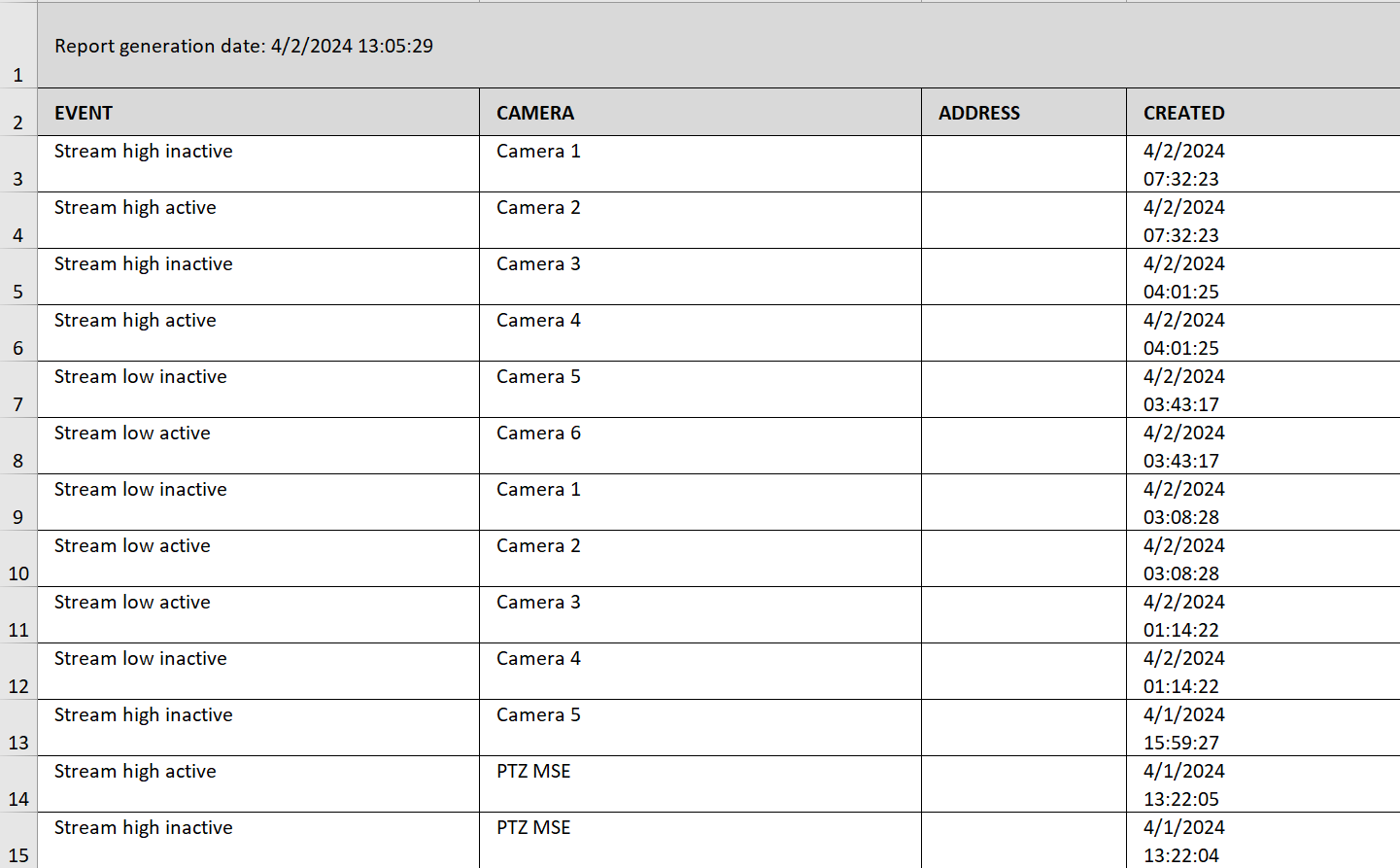

An example of a generated report.

Open Events in a new window

The Open in new window function allows you to open the Events section with all tabs in a separate window.

To open the current section in a new window, in the Events section, select the Open in new window button at the top right.

As a result, the entire Events section, including all its tabs, will open in a detached window. If a secondary monitor is connected, it will appear there. This new window will retain any filters currently applied in the main workspace.

You can open multiple detached windows with the Events section.

There is no synchronization between actions performed in the app workspace and its detached windows. Consequently, filter changes in a detached window will not be reflected in the main workspace, and vice versa.

Events update

The Refresh button is designed to manually update the list of events on the current tab.
